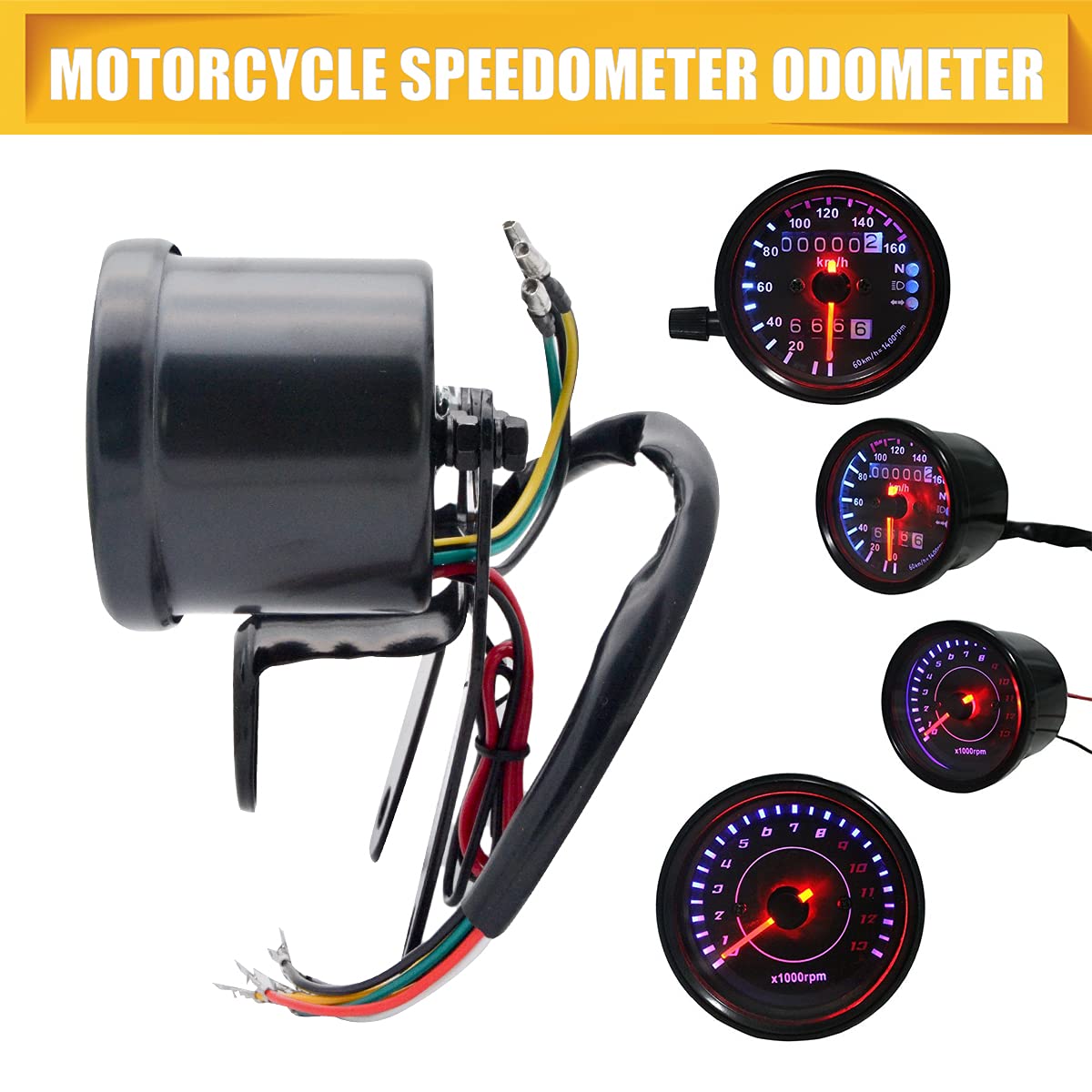

12VLED Backlight Motorcycle Dual Odometer Speedometer Tachometer Gauge Motorbike Motorcycle LED Backlight CTRIC Odometer+Tachometer Speedometer Dual Gauge New

Specification:Condition: brand newTachometer+ speedometer dual gauge kit for motorcycleHigh sensitivity and accuracyFitment: fit for all tradition motorcycle (Not EFI) (please check measurement before you buy)Voltage: 12VGeneral mechanical speed line interfaceMaterial: stainless steel shell with glass topMounting hole diameter: 10mmDetail size: as picture shownColor: blackFeature:All iron shell.With signal lamp.Long lifespan and easy to install.Fit for most motorcycles.Black color appearance with chrome, which makes your motorcycle look more charming.Shape: CircleColor: blackMaterial: metalBacklight color: LED back blue light, with light.Installation aperture: About 9.70mmWorking voltage: DC 12VInstrument light wiring mode:Black 1: ground(power negative).Black 2: negative of neutral gear.Red: backlight.Blue: head indicator.Yellow: turn signal.Green: neutral gear.Package include:1x motorcycle speedometer tchometer gauge

• ★Material: Stainless Steel ,black color,Tachometer Measurement:0-13000RPM,it is for replacement of electrical Tachometer.fit for Motorcycle scooter ATV.
• ★Tachometer Cable length:Black & Red 20cm ,Yellow,Green & Black 9.5cm, Odometer Speedometer 7 Wires length: 28.5cm / 11.22".
• ★Tachometer Measurement:0-13000RPM.Black line lock positive electrode,Green line lock negative electrode,Yellow line contacts signal.Some models need to attach high voltage signal line.
• ★Odometer Speedometer:Indicator Light on the right of Odometer: The first one is Neutral; The second is Headlight instructions; The last one is Left Right Turning instructions.Odometer Measurement : 0-160km/h ; Speedometer Unit: km/h.
• ★The positive electrode of the Neutral: Green line to The positive electrode of the Headlight: Blue line to The positive electrode of the Left turning: Yellow line to The positive electrode of the Right turning: Brown line,One of the Black line is the Negative electrode of three Indicators.Backlight and pointers:Positive electrode: Red line,Negative electrode: Another Black line
