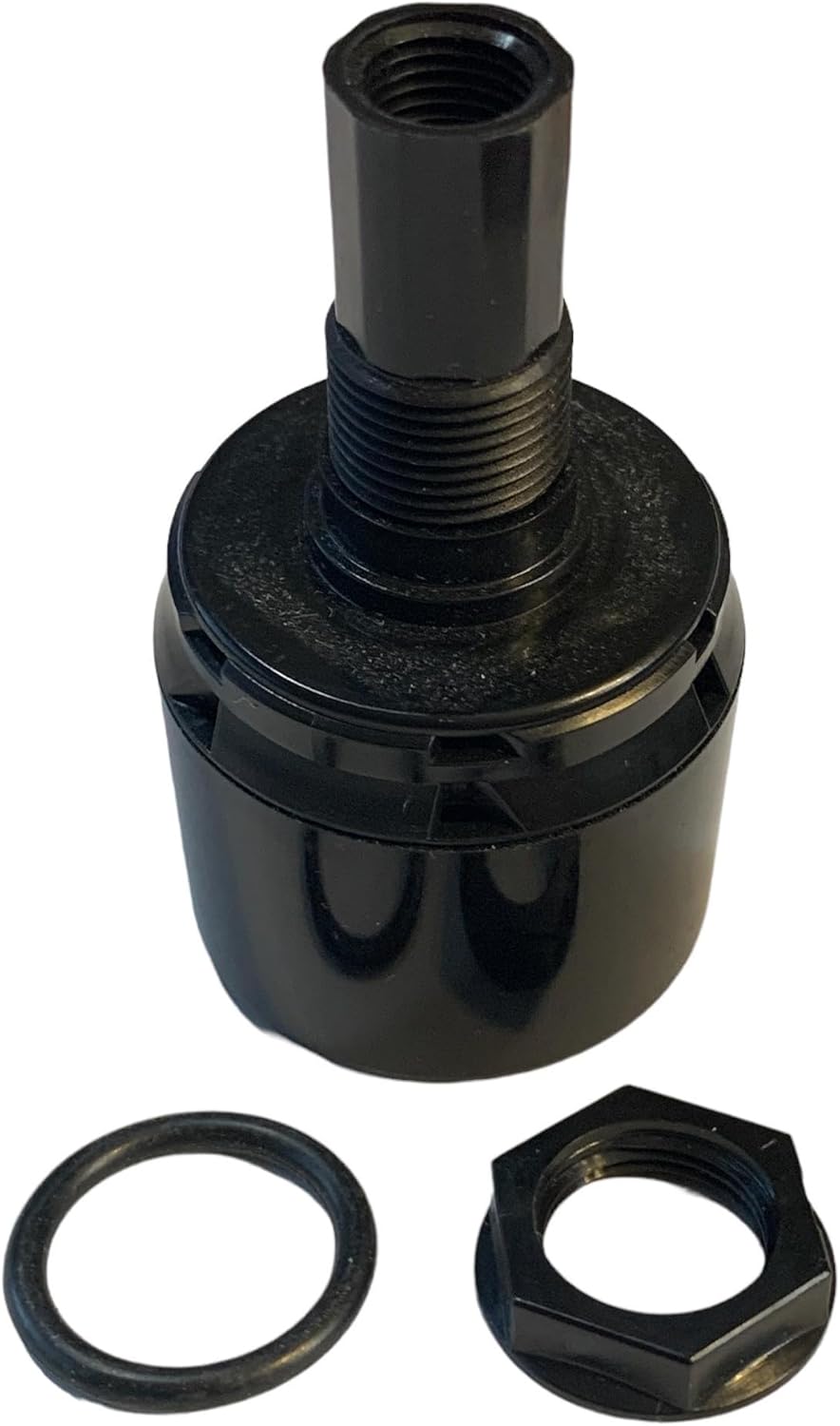

American Made Compressor & Pneumatic System Internal Float Operated Automatic Drain Valve with Nitrile Seal Compatible with Great Lakes GFO-ADL Parker AD-12 Arrow FD06B G0602920

Arrow Pneumatics #FD06B Specifications G0602920 Mfr #: FD06B Item: Automatic Drain NPT (In.): 3/8 in Temp. Range: 40 Degrees to 120 Degrees F NPT Outlet: 3/8 Design Type: Internal Float Fits: Standard Regulators Base Dia. (In.): 1.5 in Application: For Air Control Units at Inlet and Outlet Height (In.): 2.5 in For Use On: Air Lines Max. Tubing/Pipe O.D. (In.): 3/8 in NPT: 3/8 Length (In.): 2.5 in Function: Normally Closed Float Operated Drain Automatically Discharges Liquids From The Bowl When Liquids Reach A Predetermined Level Includes: Mounting Nut, O-Ring For Use with Model Number: F352F-S2, F354F-S2 Max. Temp. (F): 120 Degrees F Connection: NPT Center Hole (In.): 0.375 in Max. Pressure (PSI): 175 psi For Use with Stock Number: 33X639, 33X640 Material: metal Type: General Purpose Min. Tubing/Pipe O.D. (In.): 3/8 in Width (In.): 1.5 in For Use on Filter: 33X639, 33X640 Max. Working Pressure (PSI): 175 Bolt Circle Dia. (In.): 0.375 in For Use With Model Number: F352F-S2, F354F-S2 Accessory Type: Automatic Drain Country of Origin (subject to change): United States Feedback Help us improve our product information Description Automatic Drain, General Purpose, NPT (In.) 3/8 in, NPT Outlet 3/8, Max. Pressure (PSI) 175 psi, Max. Temp. (F) 120 Degrees F, Center Hole (In.) 0.375 in, Fits Standard Regulators, Metal, Max. Tubing/Pipe O.D. (In.) 3/8 in, Min. Tubing/Pipe O.D. (In.) 3/8 in, For Use On Air Lines, For Use With Model Number F352F-S2, F354F-S2, Length (In.) 2.5 in, Height (In.) 2.5 in, Width (In.) 1.5 in, Includes Mounting Nut, O-Ring

• 6 month warranty
• American made
