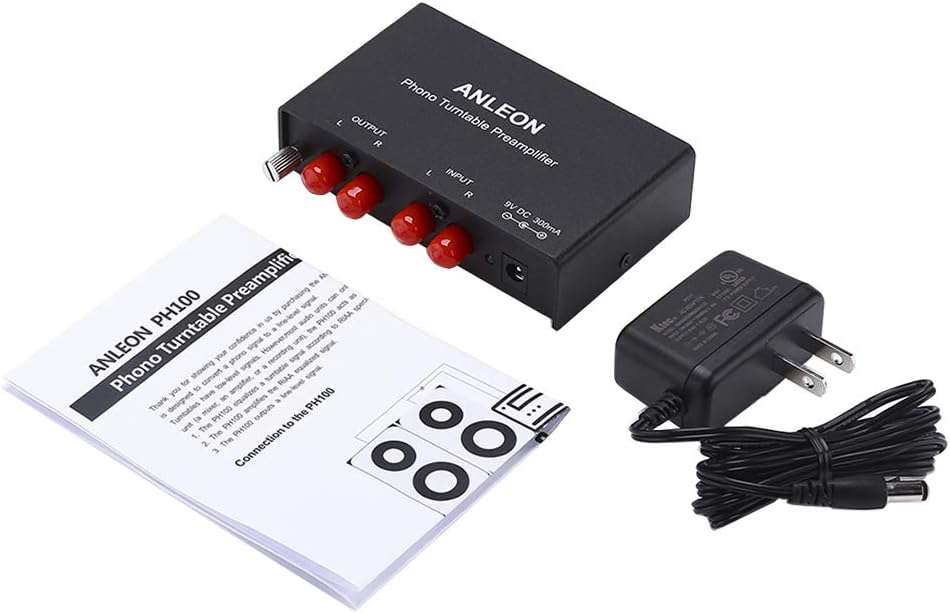

ANLEON PH-100 Mini Phonograph Preamplifier Phono Turntable Preamp Preamplifier Turntables Phono preamp

The ANLEON PH100 is designed to convert a phono signal to a line-level signal.Turntables have low-level signals. However,most audio units can only process line-level signals. Between a turntable and another audio unit (a mixer, an amplifier, or a recording unit), the PH100 acts as an intermediary, as follows:1. The PH100 equalizes a turntable signal according to RIAA specifications.2. The PH100 amplifies the RIAA equalized signal.3. The PH100 outputs a line-level signal.Connection to the PH100INPUT(L and R) connectors: To send a turntable signal to the PH100, you need an RCA audio cable (stereo). Use this cable to connect:the left output on the turntable to the L(left) INPUT on the PH100the right output on the turntable to the R(right) INPUT on the PH100OUTPUT(L and R) connectors: To use these RCA connectors, you need an RCA audio cable (stereo). Use this audio cable to connect:the L(left) OUTPUT on the PH100 to the left input on the amplifier, recording unit, or mixer. (On a mixer, use a CD or Tuner or TAPE input.)the R(right) OUTPUT on the PH100 to the right input on the amplifier, recording unit, or mixer. Technical specifications Input capacitance/input impedance: 120pF/47kohms Gain: 32dB Output voltage typically: 200mV/1kHz at 5mV/1kHz Noise floor: 88dB (A weighted) THD;0.05% RIAA-equalisation curve accuracy: 20Hz - 20kHz / max. 0.5dB Input & output: gold plated RCA connectors Power supply: 9V/300mA DC Dimensions W x H x D : 102 x 22 x 65mm Weight: 265g without power supply

• COMPACT DESIGN gives you the ability to connect your turntable to your stereo receiver, speakers, or other audio device
• Compatible with moving Magnet phono cartridges
• Dual-mono circuitry for optimized Channel separation
• Low-noise integrated circuits Gold-plated RCA inputs and outputs
• Metal case protects unit from vibrations and electromagnetic interference
