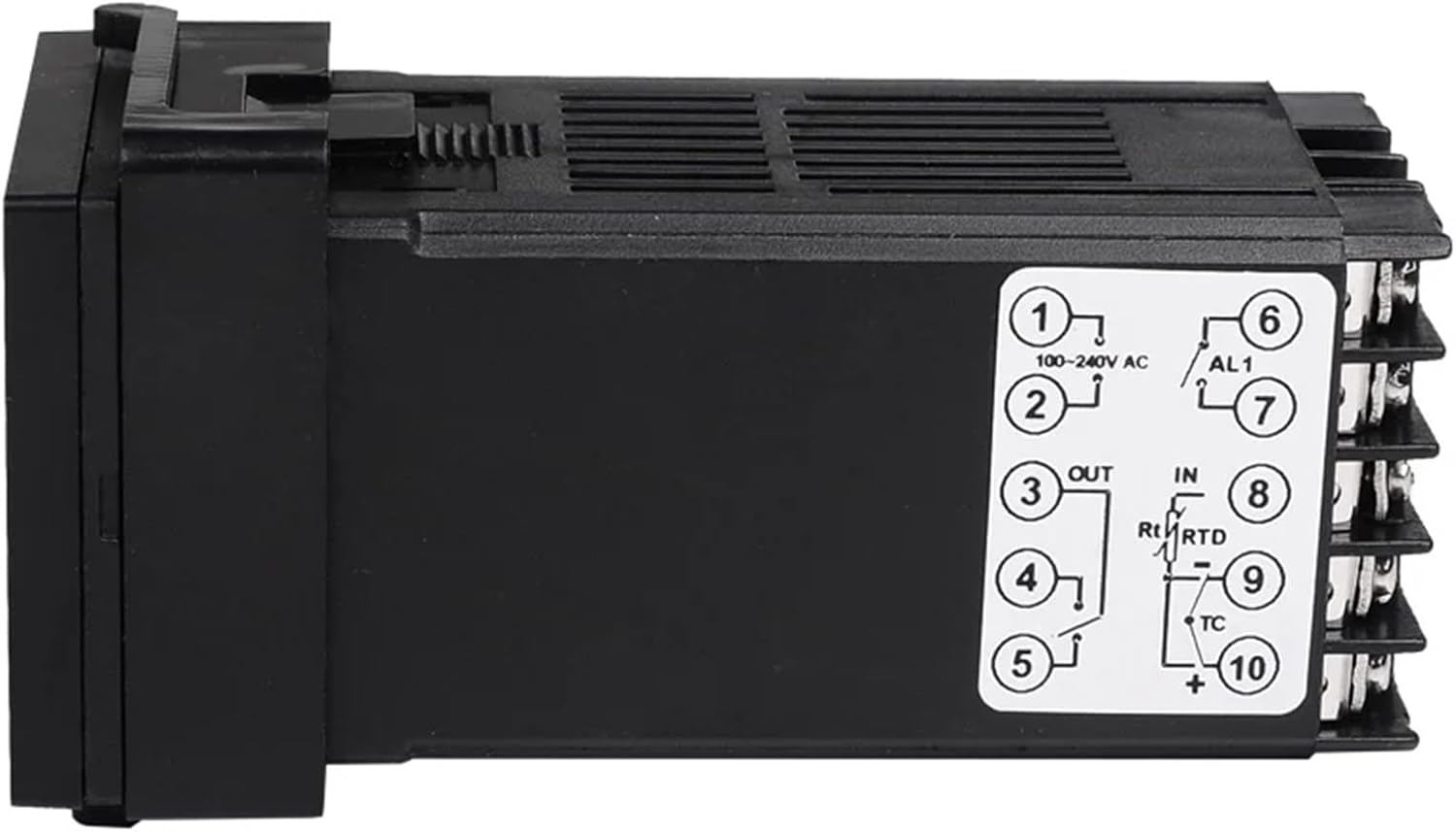

Dual Digital RKC PID Temperature Controller REX-C100 with Sensor Thermocouple K, Relay Output

Temp Control SensorSpecifications:Display: Dual display forCelsius (°C)Range:0~1300°C (this range is just for the temperature controller, the attached K type thermocouple is just for 400°C)Thermocouple: K,J,S,E,R,B,N,TThermo Resistor: PT100, Cu50Main Output: Relay:PID cooling/heating control1 RELAY alarm: Normal open, capacity 250V/3A AC or 30V/3A DC7 different Dual Output combinations with: high / low / high deviation / low deviation /interval / out of interval / breakage alarmAccuracy: 0.5%Input:Dimension: DIN: 1/16 (48mm x 48mm x 110mm)Weight: about 200gIndividually programmable PID control parameters.P, I, d, controlling period, digital filter coefficient, and moreRelay control ready to connect K type thermocouple: 0-400'C, 2m cable (6 feet).Compact design:DIN 1/8 great form-factor to be included/build-in to your product.Input: TC(K,J,S,E, N, T, R, B ) / RTD (Pt100,CU50) universal input, or 0-20mA signal.Control output: RELAYAlarm output: 1 line output, 7 kinds of alarm mode: high/low/high deviation/low deviation/interval/out of interval/breakage alarm.Package Included:1x REX-C100 PID Temperature Controller1x K thermocouple ( 0~400°C, 2m cable (6 feet).)1xUser Manual in EnglishMeasure Type : KCable Length : 2mType : KTheory : Temperature ControllerDisplay Type : DIGITAPower Type : ChargerModel Number : REX-C100Display Size : 1.9 Inches & UnderOrigin : Mainland ChinaMax Measuring Temperature : 120°C & AboveStyle : Standing StationUsage : IndustrialSize : 48*48*110 mmInput : Thermocouple/RTDControl output : RelayAlarm output : ALM1Display : Celsius °C

• Temp Control Sensor
• Temperature Controller
