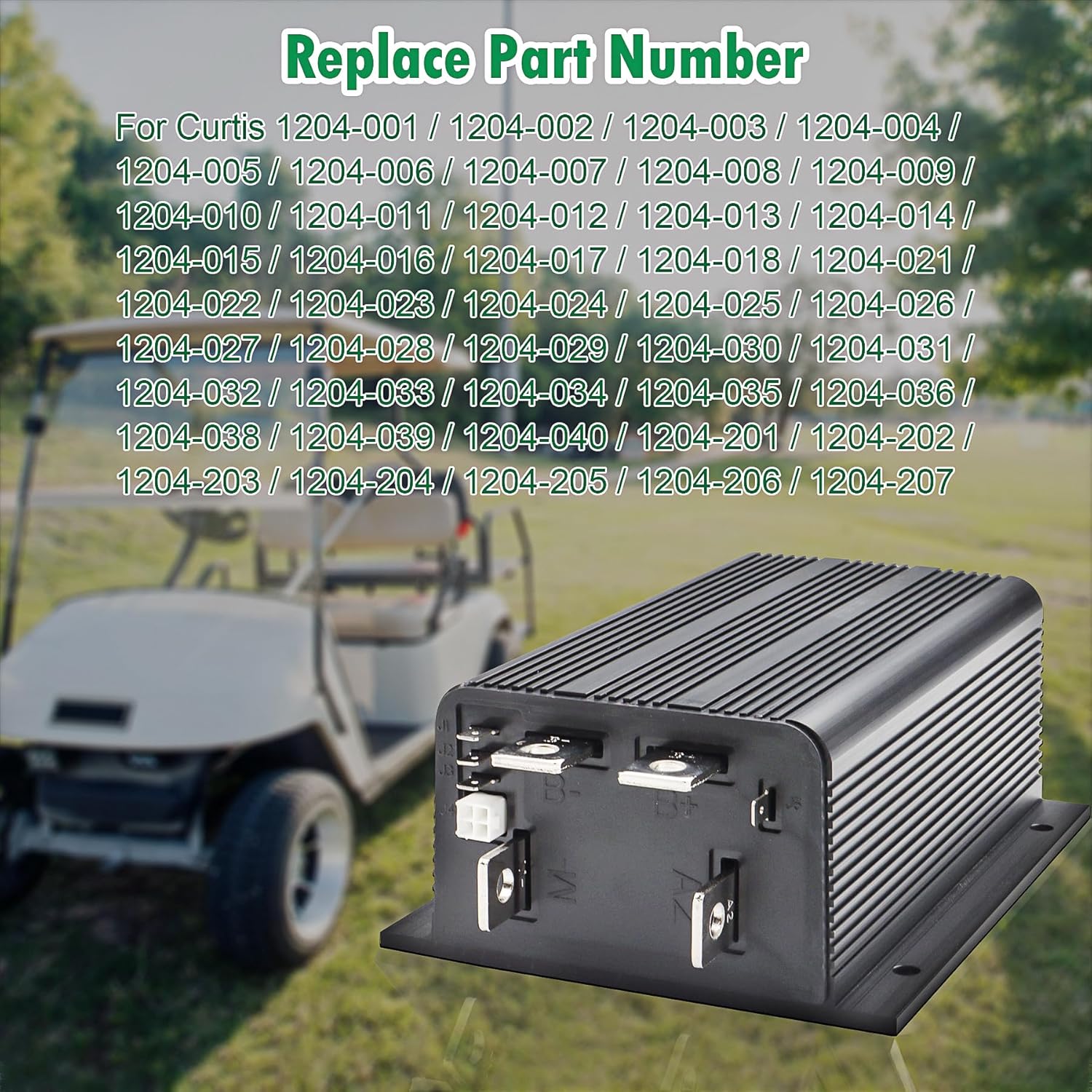

for Curtis 1204-001 Controller 24V 275Amp (0-5KΩ) Compatible with Curtis Golf Cart PMC Motor Controller, Replace 1204-004 1205 Controller

Product WEIGHT: 1.8KG, Length: 174 mm, Width: 146 mm, Depth:70mm Limit Current Rating (amps): 275 2 Minute Current Rating (amps): 275 5 Minute Current Rating (amps): 200 1 Hour Current Rating (amps): 125 Ten throttle types can be used with these controllers: Type 0: 2-wire potentiometer, 0–5kΩ; Type 1: 2-wire potentiometer, 5kΩ–0; Type 2: single-ended 0–5V input; Type 3: 2-wire potentiometer, 4.6kΩ–0; Type 4: 2-wire potentiometer, 5.5kΩ–0; Type 5: 2-wire potentiometer, 1kΩ–0; Type 6: ITS input; Type 7: single-ended 6.3–10.6V input; Type 8: single-ended 6–12V input; Type 9: single-ended 3-wire potentiometer, 0–5kΩ High-frequency switching and ultra-low voltage drops provide high efficiency and silent operation. Simple mounting and wiring with push-on connectors for control signals and plated solid copper buses for power connections.

• SPECIFIC PARAMETERS - 1204-001 controller, Voltage is 24 Current is 275 Throttle type is 0-5KΩ.
• FLEXIBLE APPLICATION - Easy to install and directly to replace the old version. It can be adjusted with a hand held Curtis programmer #1313-3301 for personalized control over acceleration, voltage, throttle, and more, providing flexibility for specific applications.
• SUPERIOR QUALITY - This 1204-001 Speed Controller operates at high frequency, making them a noiseless and cost-efficient choice as they allow smooth control of brake, torque, and speed to keep your golf cart running smoothly and safely.
• COMPATIBILITY NOTE - In Order To Avoid Unnecessary Return, Please Refer to Your Own Part and Make Sure Your Part is 24V / 175A / 0-5KΩ Or 24V / 275A / 0-5KΩ, By default, We made the controller’s setting of 24V/ 275A / 0-5KΩ, which is available.
• IMPORTANT - If you are not sure of its suitability, feel free to tell us your controller number and we will help you to confirm. Ensure you a pleasant shopping experience.
