Jonard Tools CSR-1575 Cable Slit and Ring Tool
Product details
| Management number | 208218881 | Release Date | 2026/03/22 | List Price | $13.98 | Model Number | 208218881 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

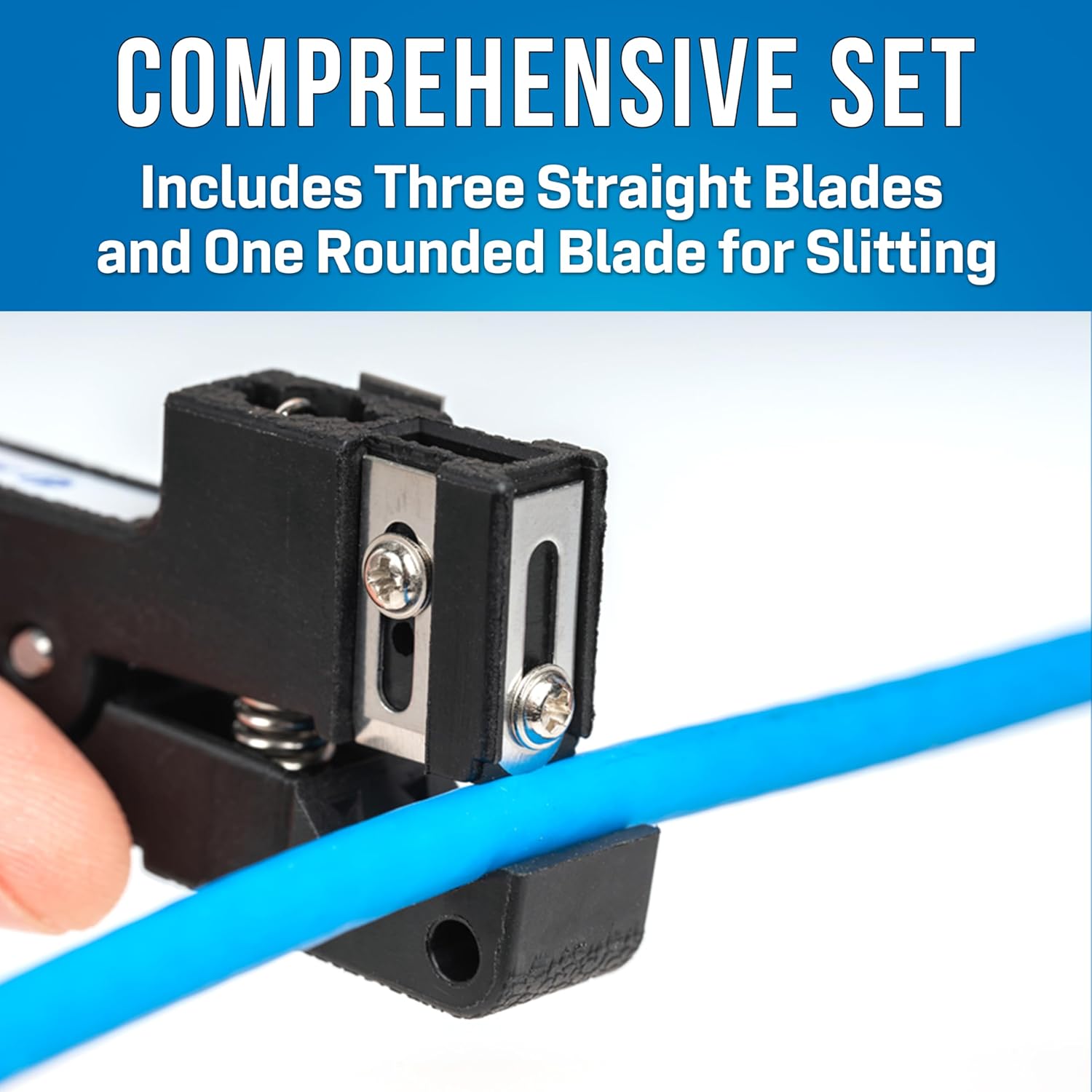

The CSR-1575 is designed to slit and Ring cables, buffer tubes and jackets on fiber optic cables up to 7.5 mm in diameter. The tool features and easily adjustable slit blade and ring blade as well as a removable V block that improves slitting performance.
- Ring blade is easily adjustable using the adjustment knob. Rotate the knob toward the "+" sign to increase cutting blade depth and rotate the knob toward the "-" sign to decrease cutting depth
- Once depth is determined open jaw, insert cable, rotate tool around cable 3 times, open jaw and remove cable, pull off jacket
- Slitting a cable: First select which V groove is needed on the V block, we recommend using the small V groove for cables 3 mm or smaller and use the large V groove for cable larger than 3 mm
- To remove V block simply push on the V block, remove from tool
- Set the depth of the slitting blade by loosening the screw holding the blade in place, use the tab to move the blade up or down to the desired slitting depth, tighten screw
| Manufacturer | Jonard Tools |
|---|---|
| Item model number | CSR-1575 |
| Product Dimensions | 0.5 x 4.75 x 8.5 inches; 1.58 ounces |
| Is Discontinued By Manufacturer | No |
