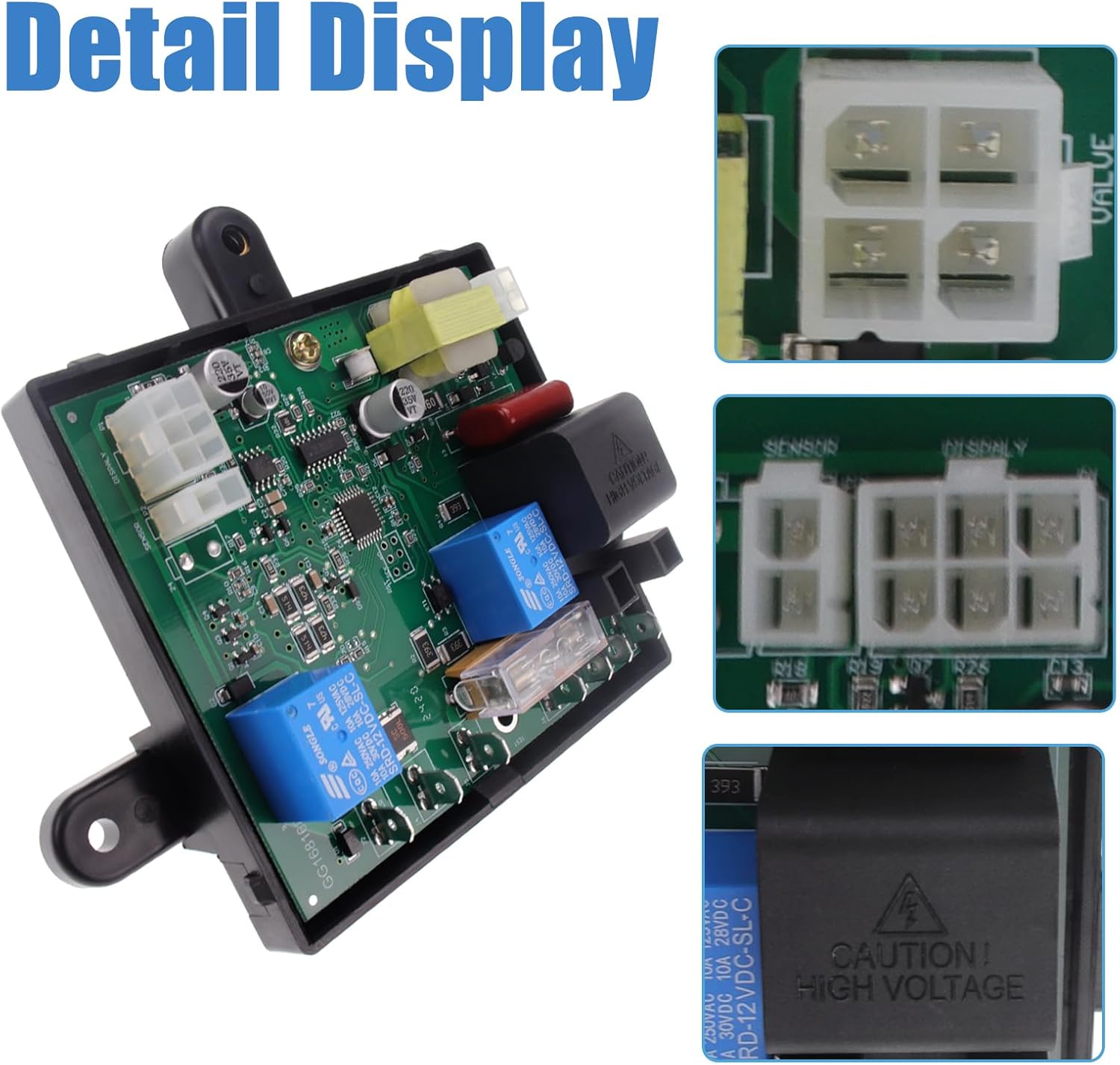

RV Fridge Circuit Board, 3316348.900 RV Fridge Refrigerator Circuit Control Power Module Board for Dometic DM2652 DM2662 DM2682 DM2872 DM2882 RM2652 RM2351 RM2451 RM2554 NDM1062 NDR1062 DMA4061
Product details
| Management number | 208175979 | Release Date | 2026/03/22 | List Price | $24.00 | Model Number | 208175979 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specification: Item Name: RV Fridge Circuit Board Vehicle Service Type: Refrigerator Power Supply: 120VAC, 3.5A,60Hz and 12VDC, 1.9A. Color: Black Feature: Made of high quality materials for durability, reliability. Stable performance, moisture resistance and a long service life. 7 ports design for RV fridge power circuit board. Board Details: P1-Connected to upper control board P2-Thermistor P3-Connected to gas valve J2-Connected to indoor lighting/climate control J4-Positive 12V DC from terminal block J5-AC line voltage (black) J6-AC neutral (white) J7-AC neutral output to AC heater J8-AC line output to AC heater switch side J10-Negative to chassis ground. Application: This RV fridge circuit board is suitable for Dometic models: For Dometic DM2652 DM2662 DM2672 DM2682 DM2663 DM2852 DM2862 DM2872 DM2882 DM3862 DM2852lbx DM2862rbx For Dometic RM2652 RM2807 RM 2351 RM2354 RM2451 RM2454 RM2551 RM2554 RM2620 RM2662 RM2820 RM2852 RM2862 For Dometic NDM1062 NDR1062 For Dometic DMA4061 DMA4064. Replace Part Number: 3316348.900 3316348.000 3850712.013. Package Includes: 1 x RV Fridge Circuit Control Board for Dometic models Note: Please review the product information, part numbers and your refrigerator model number before purchasing to make sure that the power circuit control board is compatible with your equipment.
- [COMPATIBILITY] This RV fridge circuit board is suitable for Dometic models: DM2652 DM2662 DM2672 DM2682 DM2663 DM2852 DM2862 DM2872 DM2882 DM3862 DM2852lbx DM2862rbx RM2652 RM2807 RM 2351 RM2354 RM2451 RM2454 RM2551 RM2554 RM2620 RM2662 RM2820 RM2852 RM2862 NDM1062 NDR1062 DMA4061 DMA4064.
- [REPLACEMENT] Package includes 1 pcs RV Fridge Circuit Control Board of 120VAC, 3.5A,60Hz and 12VDC, 1.9A, and the replace part numbers of this RV power module board are 3316348.900 3316348.000 3850712.013.
- [FEATURE] The RV refrigerator circuit board is designed with 7 ports and is made of quality materials for durability, reliability, and has stable performance of moisture resistance and a long service life.
- [FUNCTION] The power module circuit board is a lower control board replacement for gas absorption refrigerators with integrated propane enabled ignition. The lower control board is the main circuit board on the refrigerator that controls the ignition, propane operation and power to the AC components.
- [DETAILS] Fuse Back Cover description: P1-Connected to upper control board, P2-Thermistor, P3-Connected to gas valve, J2-Connected to indoor lighting/climate control, J4-Positive 12V DC from terminal block, J5-AC line voltage (black), J6-AC neutral (white), J7-AC neutral output to AC heater, J8-AC line output to AC heater switch side, J10-Negative to chassis ground.
| Color | black |
|---|---|
| Defrost | Automatic |
| Capacity | 1 Liters |
| Brand Name | ZOOKOTO |
| Model Info | 3316348.900 3316348.000 3850712.013 |
| Item Weight | 12.8 ounces |
| Part Number | 3316348.900 3316348.000 3850712.013 |
| Number Of Doors | 1 |
| Special Features | Easy to Install |
| Installation Type | Undercounter |
| Item model number | 3316348.900 3316348.000 3850712.013 |
| Batteries Included | No |
| Batteries Required | No |
| Product Dimensions | 1 x 1 x 1 inches |
