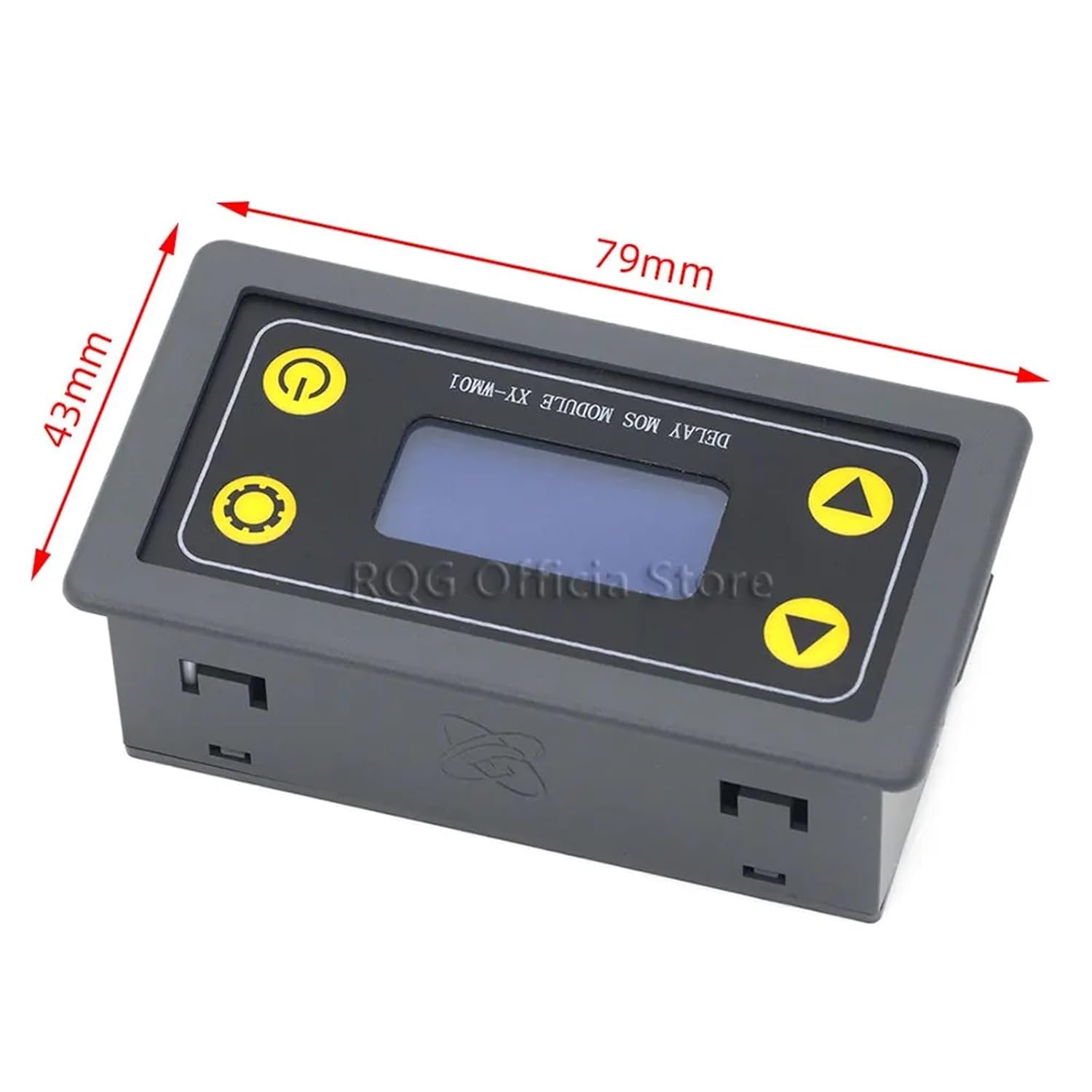

XY-WM01 6-30V Multifunctional Trigger delay Cycle Timing MOS Tube Control Replacement Relay Module 5V12V24V

RelaysTiming Range:0.01 sec~9999 minThis product lcd display, very clear, simple and easy to use, powerful, but please read user instructions carefully before using.Product Highlights:1. Display with LCD two columns, Can display parameters directly;2. Trigger mode: high and low level,switch quantity.meet most of the needs.3. Power supply: 6~30V.4. Parameters can be modified via UART.5. Stop button to provide emergency stop function.6. 5 minutes without any operation into a low-power state. Any action wake up.7. OP/CL/LOP params can be modified individually8. All parameters are automatically saved by power off.Working ModeP0: After the signal is triggered, the MOS conduction in OP time then disconnects; In the OP time, the signal is invalid.P1: After the signal is triggered, the MOS conduction in OP time then disconnects; In the OP time, the signal triggers a timer.P2: After the signal is triggered, the MOS conduction in OP time then disconnects; In the OP time, signal trigger reset timer, MOS disconnected and stop timing.P3: After the signal is triggered, the MOS disconnects the CL time, and then the MOS conduction.P4: After the signal is triggered, the MOS conduction the OP time, and then the MOS disconnects the CL time, and then loops the above action, gives the signal again in the loop, MOS disconnect, stops the timer; and the number of cycles (LOP) can be set; End of cycle, keep MOS disconnected;P5: After the signal is triggered, the MOS disconnects the CL time , and then the MOS conduction the OP time, and then loops the above action, gives the signal again in the loop, MOS conduction, stops the timer; and the number of cycles (LOP) can be set; End of cycle, keep MOS conductionP6: No trigger signal after power-on, After the MOS conduction OP time, the MOS disconnects the CL time, and then loops the above action, signal is invalid in the loop, the number of cycles (LOP
